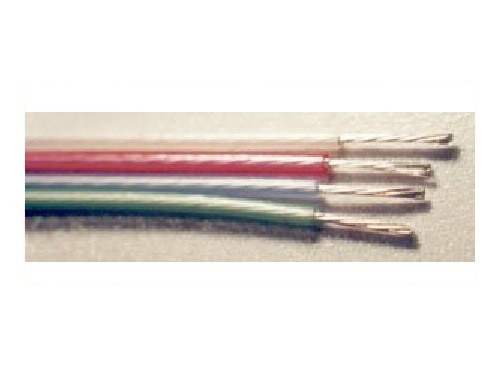

The MSS – 7 is a 36 gauge, 7 strand extremely flexible interconnect wire.
The resistance is: 1.31 Ohm/meter.
The total metal cross-section area is: 0.0127 mm². The external diameter is: 0.32 mm.
The insulation is made of PTFE and is available in the 4 colours: transparent, blue, red and green.
Each of the strands is made of a very high grade of Matched Crystal (MC) OFC with a dense and very pure silver coating.
The typical application area of this high quality wire is internal tone-arm wiring where a high flexibility of the wires passing the bearing-section, while maintaining the optimal electrical properties, is a strict must.
The MSS – 7 furthermore excellently suits wiring work on circuit boards with extremely limited space and flexible wiring between the connector board of e.g. hi-fi equipment and the component circuit board.
Also medical applications can be optimally served with this high flexible, mechanically relative strong wire with its optimal conductivity.
Packing: depending on ordered shipping weight or length.
