MCS – 300 S (halogen free)                         True transmission technology * Hybrid design * Halogeen free

Its extrusion manufacturing process yields a top-quality signal transmission without any losses.

• The resistance is 22.5 Ohm/100 meter.
• The insulation is made of PTFE with an external diameter of: 0.80 mm.

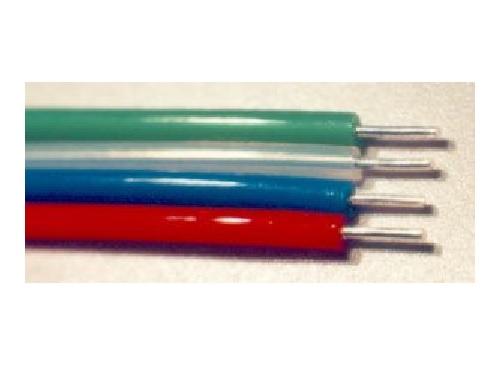

• This wire is available in the 4 colours: red, green, blue and translucent white.
• The MCS – 300 can handle a maximum mechanical force of 140 gram.
• Maximal temperature handling is 280 °C (= 536 °F).
• Typical use of this wire is internal tone-arm wiring and interconnect between sensors on the human body and outside equipment where signal-loss and deterioration free operation is a must.
• Due to its extremely low signal losses, the MCS – 300 also works very fine in pre-pre-amplifiers.
  The MCS – 300’s extrusion manufacturing process results in a very low Cross Crystal Distortion (CCD). Values below 2 picoVolt/meter are normal.
• Four times a length of MCS – 300 twisted together (with clockwise conductor wiring +-+- = starquad) makes an excellent interconnect. In this configuration the MCS – 300’s sonic behaviour remains very perfect over a very broad frequency range.
• Also for winding low loss HF/RF coils the MCS – 300 is the perfect match.

Packing: depending on ordered shipping weight or length.
